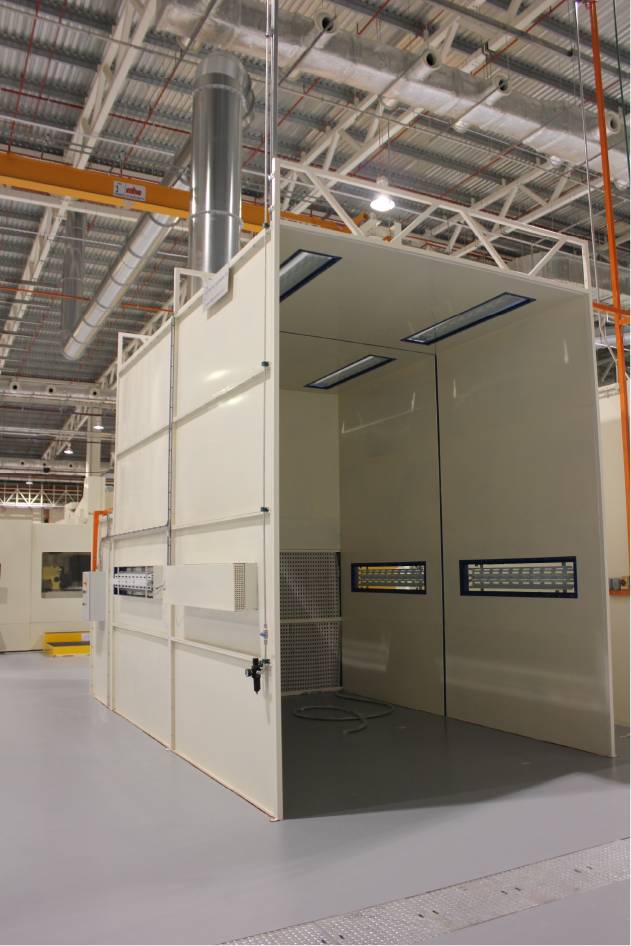

Dry Filter Spray Booth with Axial Fan
The DFA range of dry filter spray booths are our most cost effective spray booths. Fully compliant to all British and European safety standards, they can be used in a wide variety of applications and are ideally for all types of wet spraying.
General Construction:
ISS dry filter booths are constructed from 1.2mm gauge prime galvanised steel sheet. The panels are manufactured using the latest automated Laser Cut and folding machinery. They have a 50mm x 16mm return fold to enhance rigidity of the construction and are bolted together using bright zinc plated M8.8 x 16mm set screws at pitches of 250mm. The construction would give the booth a smooth internal surface to assist with cleaning and maintenance.
Extraction Fan:
Extraction is via a belt driven axial flow fan mounted on the roof of the rear extraction chamber. The axial fan is specially selected to suit the volumetric airflow as well as the back pressure of the duct run and filtration. All axial fans are constructed from fully welded mild steel with pre- punched flanges and are supplied fully powder coated (RAL 7016 as standard).
Ductwork:
Ductwork is available as either individual items or as pre-selected duct kits. These kits have been developed by ISS to cover the most common ducting runs and are supplied with everything needed to install and secure a duct run. Ductwork is industry standard galvanised spiral wound and installed in accordance with DW144.
Optional Extras:
- Lighting
- Magnehelic Filter Gauge
- High Effciency Filter
- Extended Canopies
- ‘Plug & Play’ Electrical Kit
- Single Phase & ATEX Motors
Axial Fan Dry Filter Booths provide a full height spray booth of 2250mm internally. These units are fitted with Axial Fans to provide adequate airflow. The duct connections are on the top for vertical exhaust. Depending on the size of booth, there are 1 or 2 exhaust fans and ducts required. The standard unit comes with a 1M long canopy fitted with LED lighting which can be extended if required.
All standard units are provided with extraction for a maximum of 6M straight and 2×90° bends.
